SURFACE MOUNT CAPACITOR SOCKET CSX SERIES
Wildcat Electronics, Inc. has combined its four-finger high reliability contact with a surface mount capacitor and circuit assembly to create a full line of decoupling (dual-in-line) sockets.
Features
Available in three lead terminal styles: .125" PC tail, .180" PC tail and 3-level wire wrap.
Available in three capacitor values: .01uF, 10uF and .33uF.

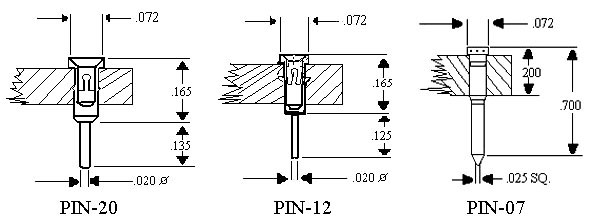

Pin Styles

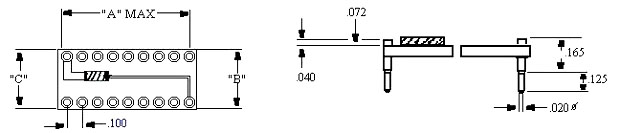

Application Dimensions
PCB Hole Size Range .055" +/- .003" (1.40 + 0.08) Solderless Wrap
.035" +/- .003" (0.89 + 0.08) PC Solder Terminal
IC Pin Dimension Range .016" to .021" (0.41 to 0.53) dia. 105" (2.67) min. length
Specifications
Insulator: Laminated Glass Epoxy
Shell: Machined Brass
Shell Finish: Gold/Nickel per MIL-G-45204 or Tin/Nickel per MIL-T-10727 and Nickel per QQ-N-290
Contact: Beryllium Copper
Contact Finish: Gold/Nickel per MIL-G-45204

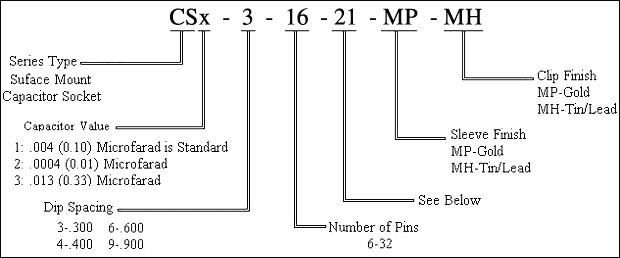

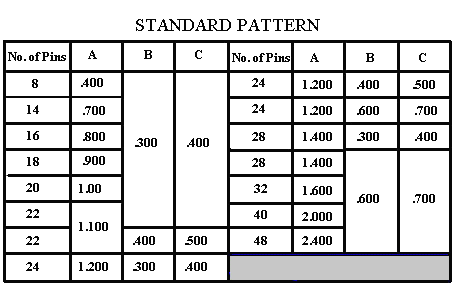

How to Order
