CAPACITOR SOCKET OPEN FRAME
SERIES COFDS
The Open Frame design allows for maximum cooling and inspection. All insulators are end-to-end and side-to-side stackable. Series COFDS is available in sizes 6 to 64. The precision screw-machine outer shell and the four-finger BeCu inner contact allows for easy IC insertion. The capacitors are axial leads which eliminate the noise factor. The capacitors are soldered to the Pin 1 and Pin G.

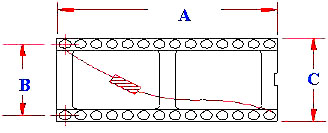

Capacitor Socket image
Dimensions
No. of Pins Dimension A Dimension B Dimension C
6 .300 .300 .400
8 .400 .300 .400
10 .500 .300 .400
14 .700 .300 .400
16 .800 .300 .400
18 .900 .300 .400
20 1.00 .300 .400
22 1.10 .300 .400
24 1.20 .300 .400
28 1.40 .300 .400
32 1.60 .600 .700
36 1.8 .600 .700
40 2.00 .600 .700
48 2.40 .600 .700
50 2.5 .900 .1.00
52 2.60 .900 1.00
64 3.20 .900 1.00

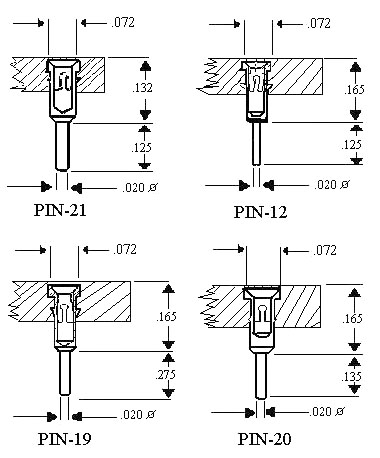

Pin Styles
is this the correct image for this page?
NOTE: OTHER PIN OPTIONS AVAILABLE. SEE PIN STYLE PAGE
Specifications
Insulator Material: Glass Filled Thermoplastic Polyester (P.B.T) Thickness: .100" to .112"
Flammability Rating: UL94V-0 Operating Temperature: -76F to +284F
Shell Material: 360 1/2 hard Brass per QQ-B-626 Clip Material: Beryllium Copper per QQ-C-530
Shell Finish: Gold/Nickel per MIL-G-45204, Tin/Nickel per MIL-T-10727 and Nickel per QQ-N-290

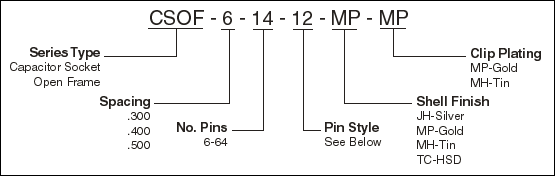

How to Order
