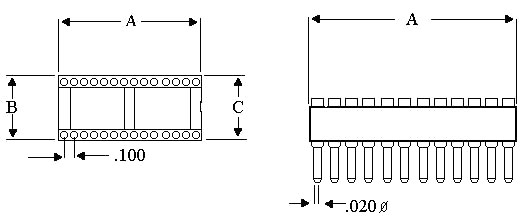

OPEN FRAME DIP SOCKET: SERIES OFDS

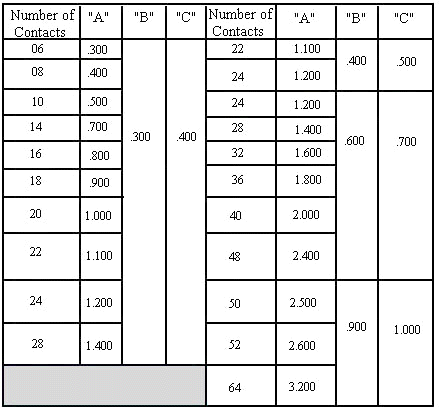

Dimension Table
Pin Styles

NOTE: OTHER PIN OPTIONS AVAILABLE. SEE PIN STYLE PAGE
Specifications
Insulator Material: Glass Filled Thermoplastic Polyester (P.B.T) Thickness: .050" to 1.00"
Flammability Rating: UL94V-0 Operating Temperature: -76°F to +284°F
Shell Material: 360 1/2 hard Brass per QQ-B-626 Clip Material: Beryllium Copper per QQ-C-530
Shell Finish: Gold/Nickel per MIL-G-45204, Tin/Nickel per MIL-T-10727 and Nickel per QQ-N-290

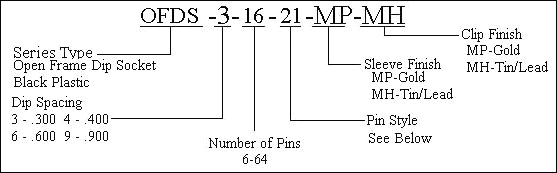

How to Order
