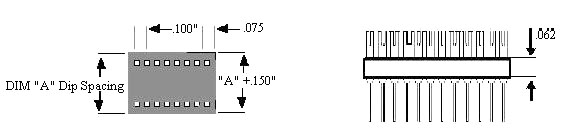

DIP ADAPTER BOARDS: DAB SERIES
Features
Custom configurations available.
Will not melt under influence of solder iron.
Available in all standard dip configurations.
Terminal in every other hole configuration available
.018 x .015 Lead Tail in phosphor bronze-conforms to IC lead sizes.
Bifurcated design for larger diameter components.
Terminal Style 11

Terminal Press Fit into .055 Mounting Hole
Specifications
Insulator Material: Glass Epoxy Laminate
Shell Material: Phosphor Bronze
Flammability Rating: UL94V-0
Contact & Shell Finish : Gold/Nickel per MIL-G-45204, Tin/Nickel per MIL-T-10727 and Nickel per QQ-N-290

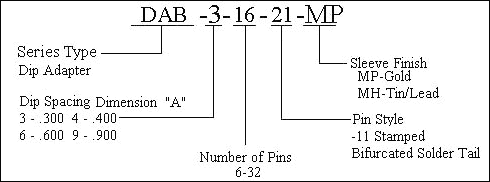

How to Order
